Endovascular balloon-assisted liquid embolisation of soft tissue vascular malformations: technical feasibility and safety

Abstract

Purpose

Arteriovenous malformations (AVMs) are abnormal communications between arteries and veins without an intervening capillary system. The best endovascular treatment option for these is unclear and may involve multiple staged procedures using a variety of embolic materials. We report our initial experience using a modified version of a previously published neurointerventional technique to treat soft tissue AVMs with single-stage curative intent.

Materials and methods

Soft tissue AVMs treated endovascularly using either sole arterial or combined arterial and venous balloon-assisted techniques with liquid embolic agents were retrospectively identified over a 3.5 year period (January 2017 to June 2020)) at two centres. Clinical, pre-operative radiological, procedural technical and post treatment details were recorded.

Results

Seven patients were treated for symptomatic soft tissue arteriovenous malformations. These AVMs were located in the peripheral limbs (five), tongue (one) and uterus (one). Curative treatment was achieved in 6/7 patients with one patient requiring a second treatment approximately 1 year later. A variety of liquid embolisation agents (LEAs) including sclerosants and polymers were used. Clinical success rate was 100% following treatment. One patient experienced expected temporary post-operative tongue swelling requiring tracheostomy occurred following embolisation of the lingual AVM. A minor complication in a second patient was due to an access site haematoma developed following treatment of the hand AVM requiring surgical intervention. No long-term sequelae or additional complications were observed.

Conclusion

Endovascular arterial and venous balloon assisted LEA embolization of soft tissue AVMs with curative intent is feasible. This technique may provide an alternative treatment option for achieving durable occlusion for complex soft tissue AVMs.

Peer Review reports

Introduction

Vascular malformations (VMs) are abnormal networks of dysplastic vessels that may involve arteries, veins, capillaries or lymphatics. Peripheral vascular malformations occur in the extremities, usually within the skin and subcutaneous tissues. Several classification systems that define VMs have been published, the first by Mulliken and Glowacki in 1982 (Mulliken & Glowacki, 1982a; Gilbert et al., 2017; Mulligan et al., 2014; Ernemann et al., 2010). The International Society for the Study of Vascular Anomalies (ISSVA) classification is currently one of the most used classification systems whereby vascular anomalies are divided into vascular tumours and VMs (Dasgupta & Fishman, 2014; Mulliken & Glowacki, 1982b). VMs are further divided into simple malformations and combined malformations depending on which types of vessels are involved. Arteriovenous malformations (AVMs) are VMs involving arteries and veins that communicate via a central nidus in the absence of normal capillaries (Lee et al., 2013). Venous malformations are comprised of an ectatic network of dysplastic veins. Haemodynamic flow through a VM is also used to classify these into ‘high-flow’ and ‘low-flow’. AVMs are typically high-flow due to the high pressures within the feeding arterial vessels while low-flow malformations include venous malformations along with numerous other VMs (Jackson et al., 1993).

Endothelial cells contribute to vascular remodelling and are thus important therapeutic targets of AVM treatment, in particular at the venous sump which recruits collateral flow (Gilbert et al., 2017; Mulliken & Glowacki, 1982b). Interventional techniques aim to deliver therapeutic agents whilst targeting the venous sump and avoiding damage to adjacent tissue (Legiehn & Heran, 2006). The rate of injection, flow rate in the vascular bed, size of treated area, dwell time of the agent and its concentration are important factors in determining adequate endothelial damage. The complex configuration of AVMs often poses a technical challenge when attempting to target the venous sump (Rosen et al., 2013). Nidal access is achieved via a transarterial, transvenous or direct puncture approach, with subsequent infiltration of liquid embolic agent (LEA) (Conway et al., 2015).

AVMs were previously managed with open surgical ligation of arterial and venous outflow vessels. Early experiences demonstrated that intuitive ligation of feeding vessels worsened the condition, leading to recruitment of collateral vessels and increased vascularity secondary to local ischaemic effects (Lee et al., 2013). Currently, endovascular embolisation is the mainstay of treatment. This is typically performed with dimethyl sulphoxide (DSMO) LEAs such as Onyx (Medtronic, Minneapolis, MN, USA), an ethylene vinyl alcohol copolymer (EVOH), or PHIL (Microvention, Aliso Viejo, CA, USA), a precipitating hydrophobic injectable LEA. Poly-vinyl alcohol (PVA) particles and acrylic glue such as Glubran (GEM Srl, Viareggio, Italy) may also be used. Coils and plugs are rarely used as they prevent access if further treatment is warranted (Madani et al., 2015).

Further to the choice of embolic, the type of delivery device and technique impacts the ability of the interventionalist to achieve successful treatment. The need for flow control in AVM treatment is essential to achieve stasis within the nidus and allow the embolic agent to be deposited in the desired position. This can been addressed using a venous tourniquet or outflow embolisation prior to nidus embolisation (pressure cooker and modified pressure cooker techniques) (Chapot et al., 2014; Zhang et al., 2017; Abud et al., 2016). An occlusion balloon may also be employed, although not routinely available in all catheter sets (Arslan, 2000; Gentric et al., 2015; Kim et al., 2017; Vollherbst et al., 2018a; Hyodoh et al., 2005). Larger catheters without balloon functions present reported issues with embolic reflux into non-target vessels, vascular perforation, adhesion of catheter to vessels and need for multiple procedures to achieve resolution (Gungor et al., 2017; Weber et al., 2007).

Dual-lumen balloon catheters are useful in achieving targeted delivery of embolic agents by occluding either the feeding artery alone (‘balloon-assisted pressure cooker technique’) or in conjunction with the draining vein (‘double balloon-assisted pressure cooker technique’). Scepter C/XC (Microvention, Aliso Viejo, CA, USA), Occlusafe (Terumo, Tokyo, Japan), Ascent (DePuy Synthes, Raynham, MA, USA) and Eclipse 2 L (Balt Extrusion, Montmorency, France) are examples of these types of devices. The use of Scepter devices with PHIL and Onyx embolic agents has been validated in intracranial AVMs but poorly explored in peripheral VMs (Trivelato et al., 2018; Jagadeesan et al., 2013). The aim of this study is to evaluate balloon-assisted pressure cooker techniques in the treatment of peripheral soft tissue AVMs at two centres.

Materials and methods

A retrospective study of treated peripheral soft tissue VMs over a 3.5 year period (January 2017 to June 2020) was conducted. Patients were included if they were endovascularly treated for a peripheral VM using LEAs within the study period. Patient demographics, procedure indications, technical procedural details, complications, baseline and follow-up indices were reviewed from the hospital radiology and patient information systems and were recorded up to most recent follow up. AVMs treated using either sole endovascular arterial balloon assisted or combined endovascular arterial and venous balloon assisted embolisation techniques were included in the study. Specific clinical and technical details for each case are described below.

Result

Case 1 – lower limb low-flow venous malformation

The patient presented with a long-standing right calf vascular malformation and was referred for treatment due to recent thrombosis and increased pain particularly with prolonged standing. Multi sequence magnetic resonance (MR) imaging revealed a lobulated vascular malformation in the posterior calf measuring 5.7 cm with fluid haematocrit levels and dilated draining veins. No convincing arterial feeders and nidus were demonstrated, consistent with a small low-flow venous malformation (Fig. 1).

Fig. 1
figure1

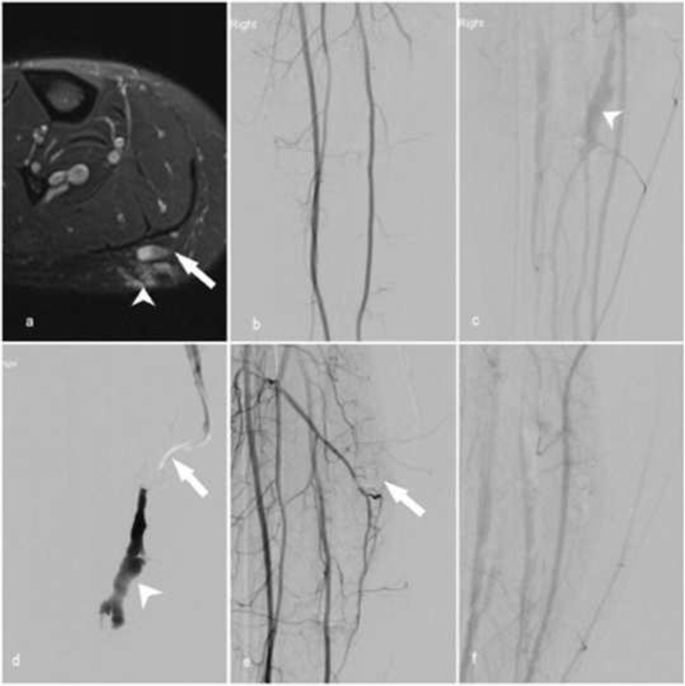

Patient 1. a) Axial post contrast T2 weighted fat saturated MRI demonstrating a lobulated slow-flow vascular malformation in the posterior calf measuring 5.7 cm with fluid haematocrit levels (arrowhead) with dilated draining veins (arrow). b) Digital subtraction angiography did not reveal arterial inflow compatible with a slow-flow venous malformation. c) Venous phase of the angiogram showing venous pouch d) Digital subtraction venography showing retrograde venous access with 6Fr intermediate catheter (Sofia, Microvention, etc) (arrow) placed within the venous pouch (arrowhead). e) Arterial inflow was then controlled using a pressure cooker technique with inflation of a dual balloon catheter (Scepter C, Microvention, etc) (arrow). 6 ml sodium tetradecyl sulphate 3% was injected from the venous side with f) subsequent arteriogram confirming no evidence of arterial leak or distal embolization and successful occlusion of the venous malformation
